| اسم العلامة التجارية: | Jufeng |
| رقم الطراز: | JF-10AT |
| الـ MOQ: | 1 وحدة |
| السعر: | contact |
| تفاصيل التعبئة: | تغليف صندوق خشبي للتصدير |
| شروط الدفع: | T/T ، D/P ، D/A ، L/C. |

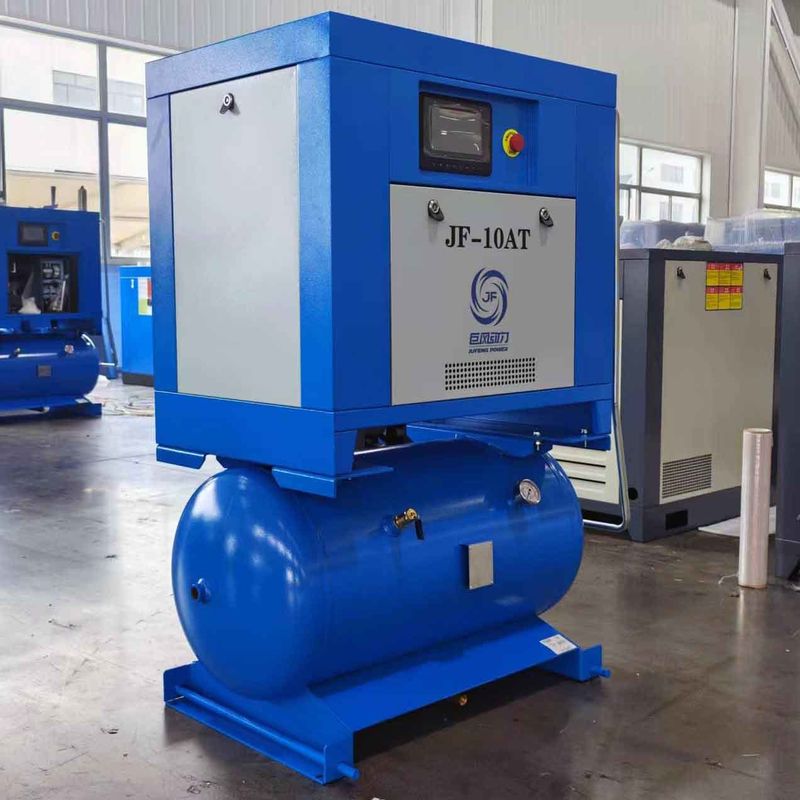

2-in-1 Integrated PM Screw Air Compressor with Air Receiver Tank
Introducing the innovative Permanent Magnet Variable Frequency Screw Air Compressor with Integrated Air Tank—a compact, efficient, and space-saving solution designed to meet your compressed air needs with exceptional performance and energy savings. This all-in-one unit combines a high-efficiency screw compressor with a built-in air storage tank, simplifying installation, reducing footprint, and optimizing air system performance.
Key Features:
Permanent Magnet Variable Frequency Motor: Delivers high efficiency, adaptive speed control, and significant energy savings (up to 30% compared to fixed-speed models), ensuring precise pressure matching to demand.
Integrated Air Tank: Eliminates the need for separate external tanks, saving space and reducing installation costs while providing stable air storage and immediate availability.
Compact Design: Perfect for facilities with limited space, the unified structure minimizes connections, lowers leakage risks, and enhances reliability.
Energy-Efficient Operation: The variable frequency drive (VFD) automatically adjusts motor speed based on real-time air consumption, reducing idle time and power waste.
Smart Control System: User-friendly interface for real-time monitoring, customizable pressure settings, and automated maintenance alerts for increased uptime.
| Model | JF-10AT |
| Tank | 200L |
| Power | 7.5kw |
| Exhaust volume | 1.2/1.1/0.9/0.75/0.65m³/min |
| Pressure | 7/8/10/12/13bar |
| Noise level | 64±2dB(A) |
| Wheel | Can be added |
| Motor protection grade |
IP23/IP54 or you need |
